Inglesham, just east of Lechlade, is the place where the Thames and Severn Canal made its junction with the River Thames. It was also  the last part of the canal to be built during 1789.

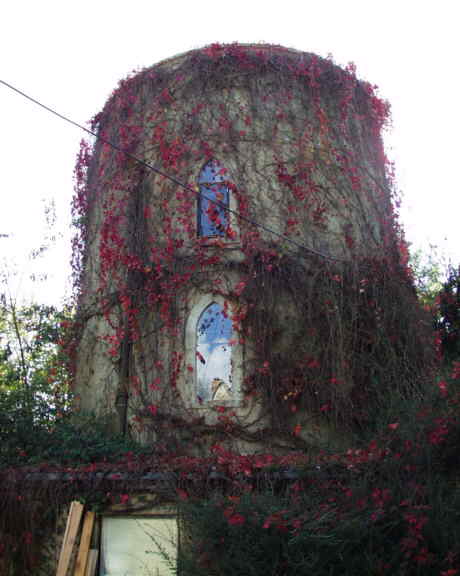

Next to the lock is one of the famous T&S Canal roundhouses. It is the last of the 3 which had inverted conical roofs to substantially retain the original roof structure. Rain falling on the roof was channelled to a lead collecting bowl in the centre which was connected to a cistern which stored water for drinking purposes (there was less awareness problems of lead poisoning  in those days). The roundhouse was probably built in 1790, just  after the canal opened.

Just downstream of the lock and bridge, there is a small warehouse building - now a dwelling. Its remote location and poor road access meant that, by 1813, the T&S Canal company felt it necessary to buy the pre-existing Parkend Wharf in Lechlade as a more practical alternative

Inglesham Lock is still has its original 90ft length, there being no real shortage of water in this part of the canal. The rather pleasant stone bridge at its tail has the date 14th November 1789 inscribed on it - and the first boat passed through the whole length of the canal just 5 days later.

There is some evidence that the lock had a circular overflow weir on the roundhouse side of the lock judging by the presence of a circular hedge nearby. There certainly was an overflow weir somewhere as the last pair of top gates to be installed, which at the time of writing still survive in situ, were planked right up to the balance beams.

The lock here has a fall of only 6ft 2in but may have originally been intended to have a 9ft fall to match that of the conventional upper part of Dudgrove Double Lock. This last part of the canal was started very late in the project and it may simply have been the case that the canal builders found that they would have had to import a lot of additional material to build the slight embankment to maintain equal falls - but not until after they had already built the upper chamber at Dudgrove. Another theory is that the Proprietors were expecting to extend the canal eastwards to Abingdon to bypass the upper part of the Thames. If this was the case, crossing the Thames at anything other than on the level would have proved an interesting problem as a right of navigation did, and still does, exist on the Thames to Cricklade. Thus a low headroom aqueduct would not have been permitted and the higher level of the canal which would have been caused by the omission of the lower chamber at Dudgrove would not have made much difference.

Immediately above Inglesham Lock was a large enough basin to allow 90ft boats to turn and thus avoid entry into the Thames.

Dudgrove Double Lock

Dudgrove Double Lock is one of the strangest structures on the T&S Canal. Its top chamber is identical in design to many of the other T&S locks being of mainly brick construction with stone quoins. There is even an overflow weir outlet in the wall below the middle gates. Its fall is similar to those at Siddington, South Cerney and Latton.

The bottom chamber is very different and has all the feeling of an afterthought. Its about 135ft long and 27 ft wide. The bottom gates are situated in brick narrows of the normal width but the rest of the chamber walls are of dry stone.

At the time of writing, the lower and middle gates are still in situ and one of the middle gates is more or less complete with paddle gear and balance beam in place - it will even open and close but is now getting very fragile with age. The upper gates have at some point in the past been replaced by a low concrete wall but due to the infilling of the canal bed upstream, water no longer comes down this part of the canal and the upper paddles are not longer in place although until recently, one of the top ground paddle racks was still there.

This lock is very overgrown and therefore difficult to photograph but remains one of the most complete T&S locks with much of its timber work still in place. Its remote location on private land has largely been responsible for this.

Dudgrove Double Lock in 1814

To the left is an old engraving dating from 1814 showing Dudgrove Double Lock in operation but its technical accuracy leaves much to be desired.
